Stock Code: LM-020111-02
LoadMaster Floor Bracket Ultra 1100(A)x600(B)x455-655(C)mm
The LoadMaster Floor Bracket is the ideal solution for solid floor mounting of outdoor units,
Cr+3 zinc coated galvanized steel raw material provides resistance to cold weather conditionsand
LoadMaster Floor Bracket Pro 1000(A)x600(B)x455-655(C)mm
Stock Code: LM-020210-02
The LoadMaster Floor Bracket is the ideal solution for solid floor mounting of outdoor units,
especially designed form multi split air conditioning systems.
Adjustable movable slides on the top plate provide adaptability for different sized units.
The special slots sur rounding the legs offer various height options and adapt to any configuration.
Cr+3 zinc coated galvanized steel raw material provides resistance to cold weather conditionsand
corrosion.
2.5mm raw material thickness provides strength and high carrying capacity.
LoadMaster Floor Bracket Eco 900(A)x500(B)x455-655(C)mm
Stock Code: LM-020390-02
The LoadMaster Floor Bracket is the ideal solution for solid floor mounting of outdoor units,
especially designed form multi split air conditioning systems.
Adjustable movable slides on the top plate provide adaptability for different sized units.
The special slots sur rounding the legs offer various height options and adapt to any configuration.
Cr+3 zinc coated galvanized steel raw material provides resistance to cold weather conditionsand
corrosion.
2.5mm raw material thickness provides strength and high carrying capacity.

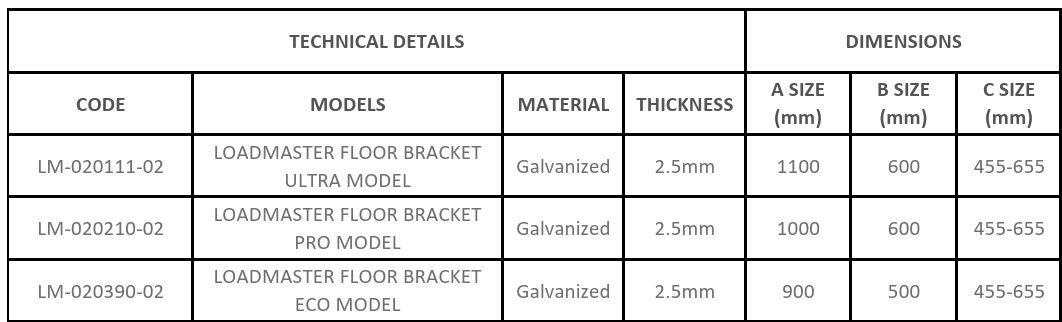

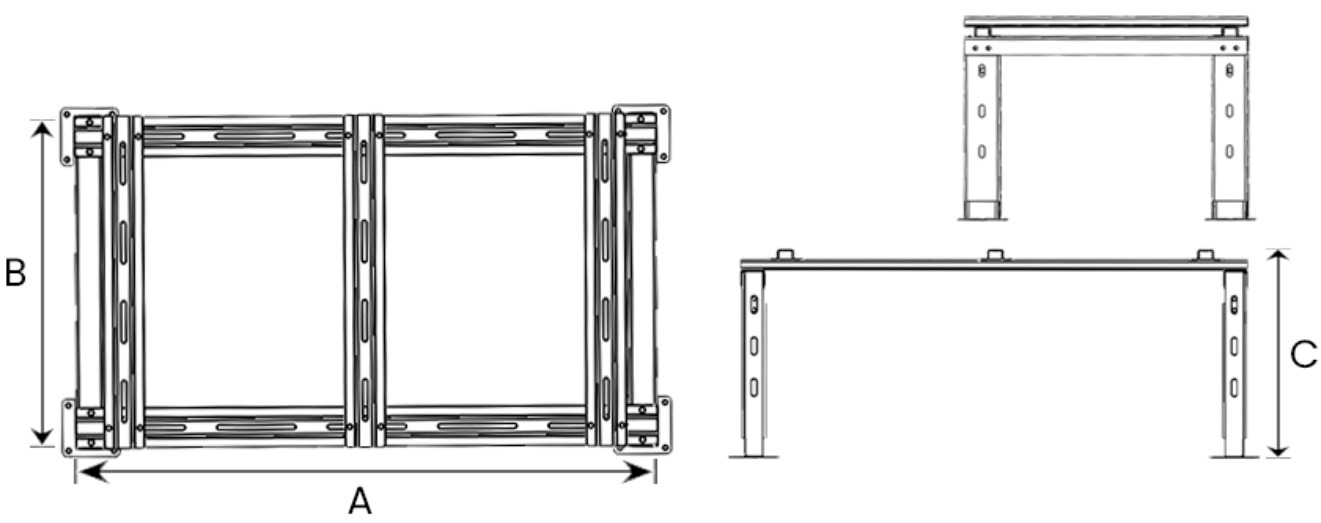

TECHNICAL DIMENSION
COLOR OPTIONS
